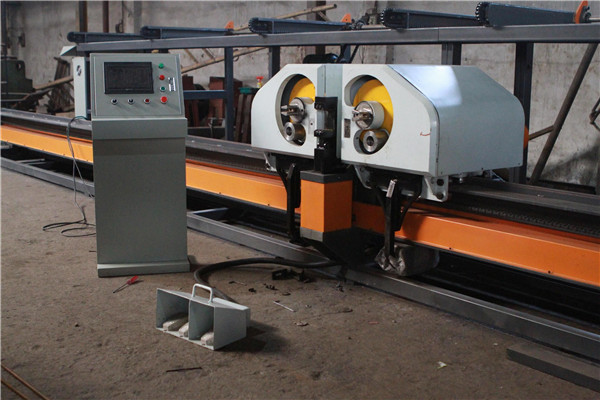

vertical cnc deformed rebar stirrup bending, double bender head

vertical cnc deformed rebar stirrup bending, double bender head

Product Description

1, imported PLC and CNC control systemcontroller with touchscreen interface,

could save hundreds graphics.

2, easy to operate, could bend more angles within one rebarloop.3, locking reinforcement bar flexible,to make sure bending precision.4, bending panel is wear-resisting,by heat treatment, have longer working life.

5, bending spindle controlled by servo system, will provide high bending accuracy.

6, this machine could set bending length easily by moving bending spindle.7, whole machine is integrated, high quality moving track.

8, retractable bending axle realize both-way bending.9, Use heavy loadingauto-feeding shelf for large batch materials.

10, high working efficiency, could bending many bars at same time.11, could process 5500pcs reinforcement bars at one day, working efficiency is 10 times compare

with traditional equipment.could instead of 12 workers.

13, bending reinforcement bars φ10mm to φ32mm; with high precision, low labor cost.

Machine dimension12000mm(L)*2200mm(W)*1600mm(H)

Max. bending angle(0)

Up bending angle(°)180
Down bending angle(°)-120
Max. Length scope of the stirrup side10000mm
Min. Length scope of the stirrup side90mm
Min. Space between stirrup side(φ10),(520mm)
Length precision±2mm
Angle precision±0.5mm
Method to change bending speedControl by international brand CNC servo motor
Total power rating14kw
Moving speed of bending head0.5-1(m/s)
Working temperature-5—40 degree
Air route pressure0.6 Mpa
Processing abilityBar diameter φ(mm)101214162022252832
Quantity of bars (pcs)654322111
Total weight5500kg


Q: What's the delivery time?

A: 10-15 working days to delivery port.

Q: What's the usually delivery terms?

A: FOB, CNF, CIF, Exworks will be OK.

Q: What's the MOQ?

A: 1 set.

Q: What’s the payment term?

A: We accept T/T, L/C or Cash.

Q: What's your delivery port?

A: Usually Qingdao port, Shanghai port.

Q: What's the packing?

A: Iron Pallet and Plywood cases or carton or depending on your requires.

Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?

A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.

Q: Can you place OEM orders?

A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.

Q:Where is your factory located? How can I visit there?

A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.

Quick Details

Place of Origin:Shandong, China (Mainland)
Brand Name:JIAXIN
Model Number:G2L32
Machine Type:Pipe and Tube Bending Machine
Raw Material:Steel Bar
Material / Metal Processed:
Stainless SteelPower:Cnc
Extra Services:End Forming
Certification:ISO 9001:2000
After-sales Service Provided:Engineers available to service
