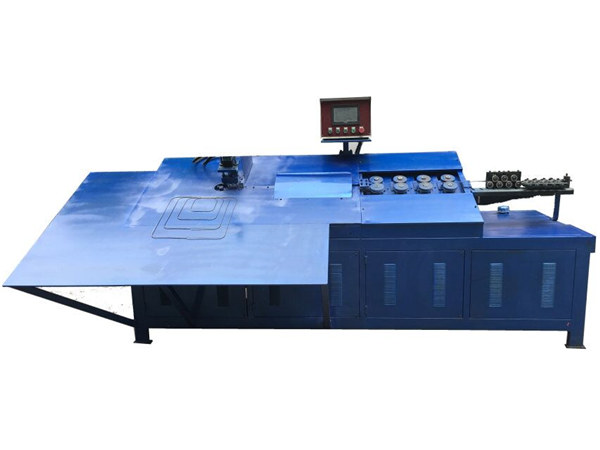

full automatic cnc control 2D wire bending machine price

full automatic cnc control 2D wire bending machine price


2D steel wire bending machine
6mm steel wire bending machine
Bending capacity : steel 2.0-6 mm
stainless 2.7-5mm
Max feeding speed:100mm/min
Max Feeding speed:2-5turns/sec
Control Panel:PLC +touch screen
Accuracy feeding:± 0.5°
Servo motor power:4.5kw
Machine weight:1100kg
Machine size:2300*1000*1200mm

The Automatic Ring Making and Ring Butt Welding Machine Features

This automatic ring making and welding machine is composed of automatic feeding, automatic coiling, automatic moving, automatic welding and automatic unloading process.
The steel wire will pass through the feeding plate, and then enter into the wire feeding wheel and wire pressing wheel. The machine will conduct ring coiling. The cutter will cut the wire into certain length, then the robot arm will grab the ring and put it into welding position to conduct butt welding. At last, the robot arm will take out the ring. The whole process will be finished.

Technological process:

Technological process:
1. Automatic feeding ( feeding the wire)
2. Automatic coiling ( hydraulic system, wire pressing wheel)
3. Automatic moving (cylinder robot arm)
4. Automatic welding (AC pulse power/MF DC power)
5. Automatic unloading (cylinder robot arm)
6. Sound-light alarm function: the machine will give alarm when the material is used up, the power is overpressure, the welding current is abnormal or when the temperature is too high.
7. Counting function: the machine will sum up the number of qualified product, defective product and welding times of electrode.
8. Monitoring function: the display screen will monitor the whole process of actions and the welding currentof each welding process. It will give alarm when the monitoring function is abnormal.

Typical Applications:

Suitable for Metal Steel Ring Making and Butt Welding.

Quick Details

Place of Origin:Shandong, China (Mainland)
Brand Name:JIAXIN
Machine Type:Wire Bending Machine
Raw Material:Steel Bar
Material / Metal Processed:Stainless Steel
Extra Services:Cut To Length
Product Name:Automatic CNC Wire Bending Machine
Item Name:Wire Bending Machine
Control Panel:Touch-screen And OMRON Button
Controller:PLC + Servo driver
Total Weight:1100 kg (excluding the hydraulic Oil)
Driver System:AC Servo Motor + Hydraulic cylinder
Feeding Speed:100mm/min
wire Diameter:2.0-6.0 mm
Machine Color:Grass Green, blue,Customized
After-sales Service Provided:Engineers available to service machine
