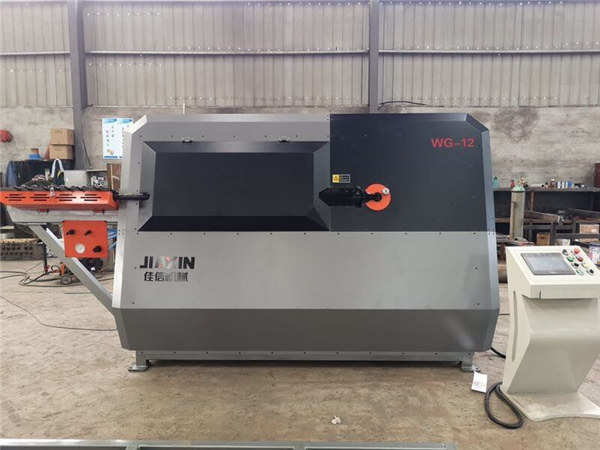

china manufacturer 4-12mm automatic cnc control steel wire,rebar bending machine

china manufacturer 4-12mm automatic cnc control steel wire,rebar bending machine

Quick Details


Condition:New
Place of Origin:Shandong, China (Mainland)
Brand Name:JIAXIN
Machine Type:Roller-Bending Machine
Raw Material:Steel Bar
Material / Metal Processed:Stainless Steel
Power:Cnc
Automation:Automatic
Extra Services:Rebar bending
Certification:CE
Double or Single line:Double
Diameter of the steel bar (single):6-10mm(HRB400)
Diameter of the steel bar (double):6-8mm(HRB400)
Angle of bending:±180°(double direction)
Pulling speed:75m/min
Bending speed:1000°/sec
Accuracy of length:
±1mmAngular precision:1°
Capability(side length≤400mm):1800 pcs/hour
Rebar bending machine Size:3500*1050*2015mm
After-sales Service Provided:Engineers available to service

Product Description


Application:

The China manufacturer 4-12mm automatic CNC control steel wire/rebar bending machine is mainly used in construction, it can finish straightening, bending and cutting off by length at same time. Application steel bar: the cold rolled ribbed steel bar, hot rolled III grade steel bar, and cold rolled round steel bar, and hot rolled round steel plate.

Product features:

1.There is only one step from a raw material to the forming products only one step.

2.High production efficiency, equivalent to twenty to thirty worker.

3.Easy operation, only need one worker, save manual work.

4.Save raw materials,Work in continuous forming almost unforeseen materials head loss

5.Small floor space. Save the work space, Can work in a narrow areas.

Specification:

ModelJIAXIN6-10-S
Double or Single lineDouble
Diameter of the steel bar (single)6-10mm(HRB400)
Diameter of the steel bar (double)6-8mm(HRB400)
Angle of bending ±180°(double direction)
pulling speed75m/min
Bending speed1000°/sec
Accuracy of length±1mm
Angular precision
Power of feeding motor11kw
Power of bending motor5.5kw
Power of cutting motor4kw
Power of air pump motor4kw
Capability(side length≤400mm)1800 pcs/hour
Weight1850kg
work environment-5℃-40℃
Machine Size3500*1050*2015mm
