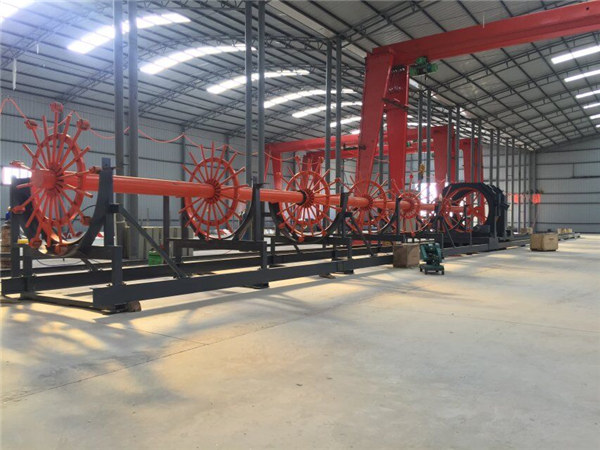

construction pile cage welding machine seam welder with ISO

Construction Pile cage welding machine seam welder with ISO

Our Advantage:

1.Fast process speed : Inventories , seam welding , reinforcement installation , guide block installation ,etc . High efficiency .

2.The processing quality is stable and reliable:Due to adopt numerical control mechanical operation , the main reinforcement , winding reinforcementuniform spacing, Reinforcing cage diameter is consistent , thequality of the products fully meet the specification,requirements, In the actual operation manual production of reinforced engineering supervision when almost every dayto check processing field , Using mechanical processing , supervision of mechanical processing of reinforcing cage implemented "exempted from inspection ".

3. Stirrup tighten without overlapping: compared with manual work saving material percent 1.5, reducing the construction cost

4. The main reinforcement uniform distribution on the circumference of a circle , is very convenient , whenmultiple reinforcing cage lap save the hoisting time.

5. Mechanized processing of reinforcing cage , to guarantee the quality control .

Technical parameters

1. Model number;GJL3000 (by basic configuration)
2. Processing scope;Steel cage diameter phi 600- phi 3000mm length 12m
3. Winding speed;0-15.4 m/min (I = 59 * 1.25 = 73.75)
4. Car speed;0-1.38 m/min (I = 593).
5. Main motor;Y90l-4 power 5.5kw
6. Trolley motor;Y90l-4 power 4kw
7. Adjust the motor;Y90l-4 power 5.5kw
8. Machine quality;4500 kg
8. Appearance size;The host 13 m * 1.8 m * 0.8 m, The car 15 m * 1.3 m * 1.5 m
9. Installation dimensions;15 m * 4 m

Pre-sales service

Pre-contract, according to the actual situation, the company sent technicians to customers or communicate to design selection for the user to choose the most suitable equipment. Provided free of charge to the equipment and technology, process, layout, and other technical consulting and system design; provide all the drawings required for the design and data.

After-sales Service-Installation

Borun service ensures correct installation and commissioning for optimum performance by trained technicians. Correct installation is essential for optimum equipment performance. You will most likely not even notice that anything is amiss, but it could mean that equipments wear out prematurely or money simply slips through your fingers as wasted energy.

Borun service ensures that this will not happen. During installation, 1-2 experienced engineering and technical personnel will be sent for the site representative for technical tests and installation instructions free of charge; processing the various problems arising in the course timely while installing.

Borun offers a commissioning agreement that specifies each single service task to be performed and the products covered, thus showing our commitment to a correct installation process. During commissioning the equipment of our company, if necessary ,the operation engineers will be sent to be involved in commissioning or remote management, ensure that the equipments in good running condition.

Borun service ensures that this will not happen. During installation, 1-2 experienced engineering and technical personnel will be sent for the site representative for technical tests and installation instructions free of charge; processing the various problems arising in the course timely while installing.
