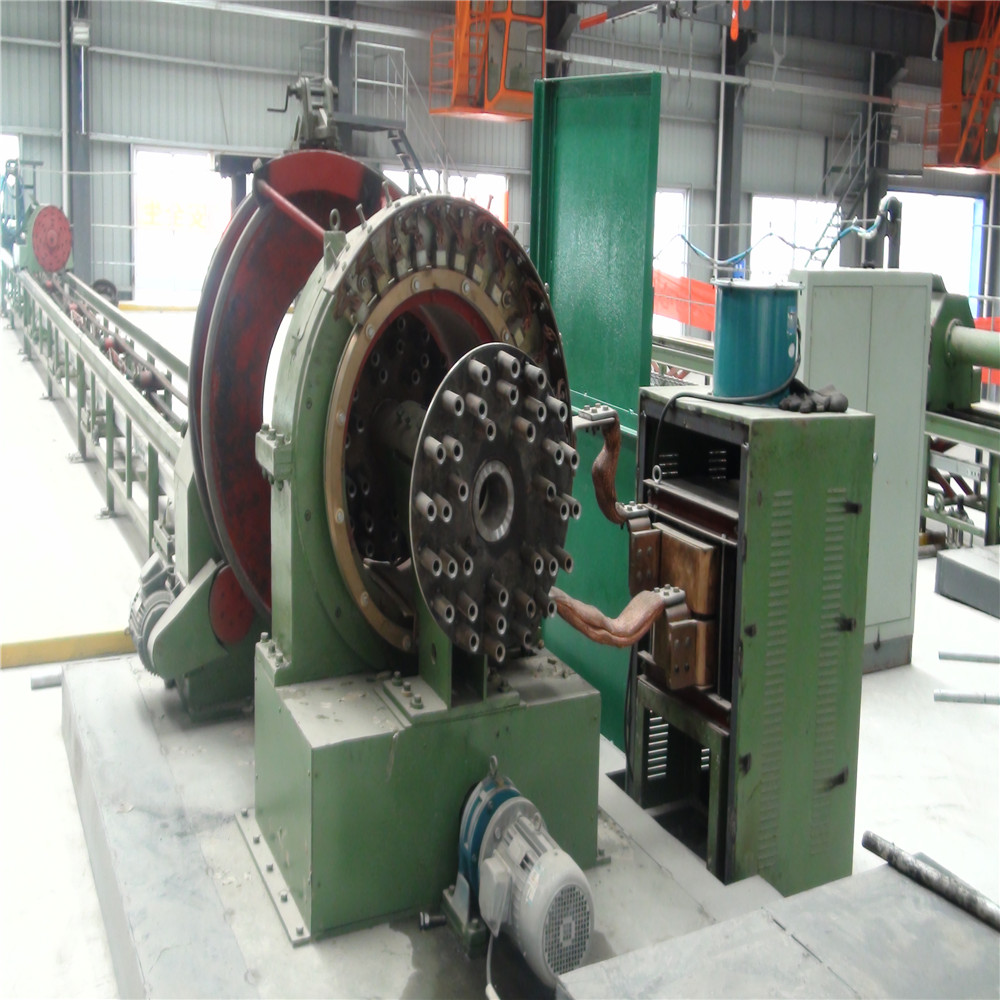

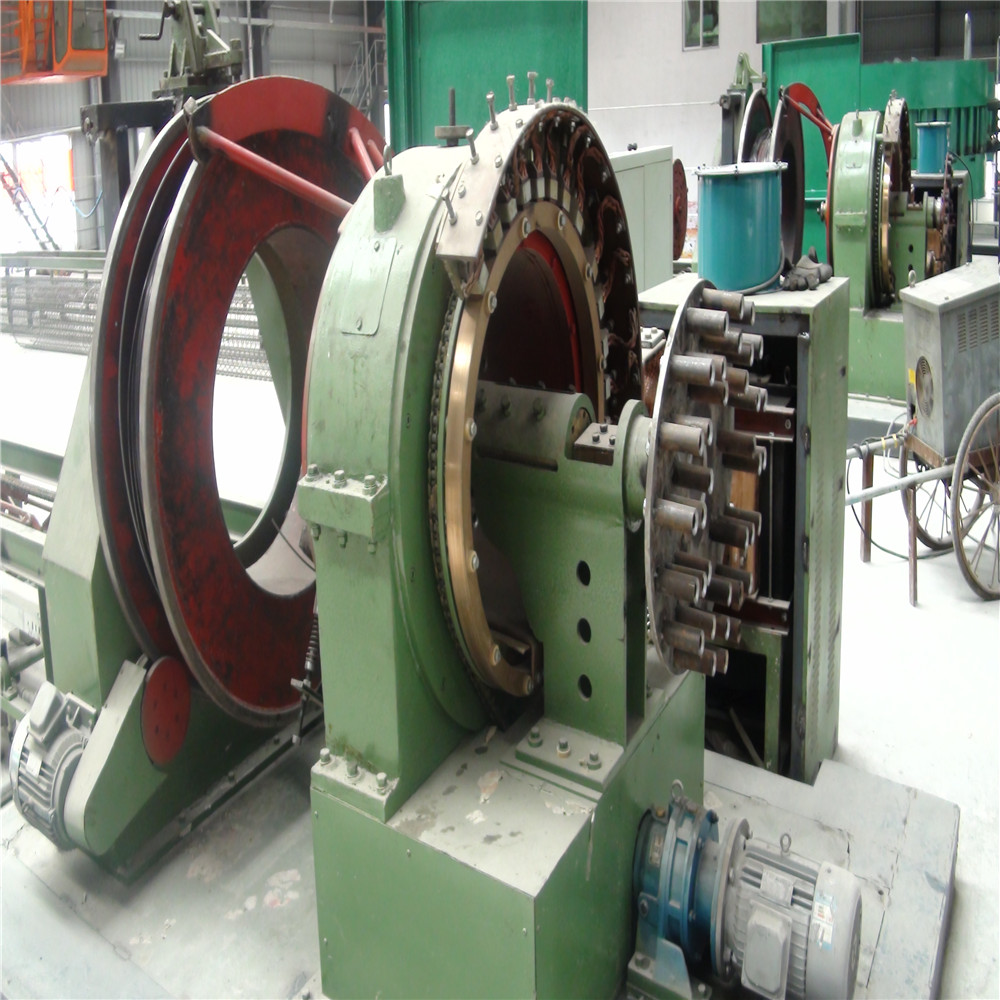

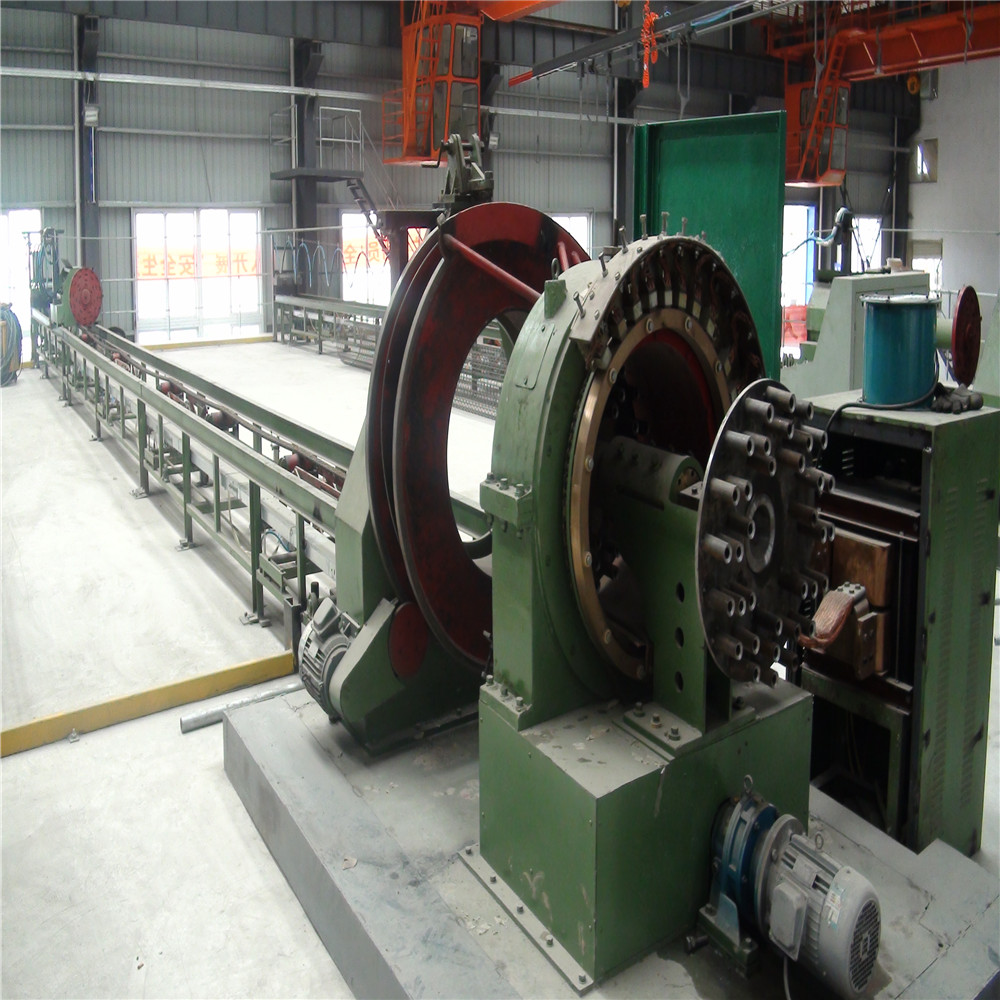

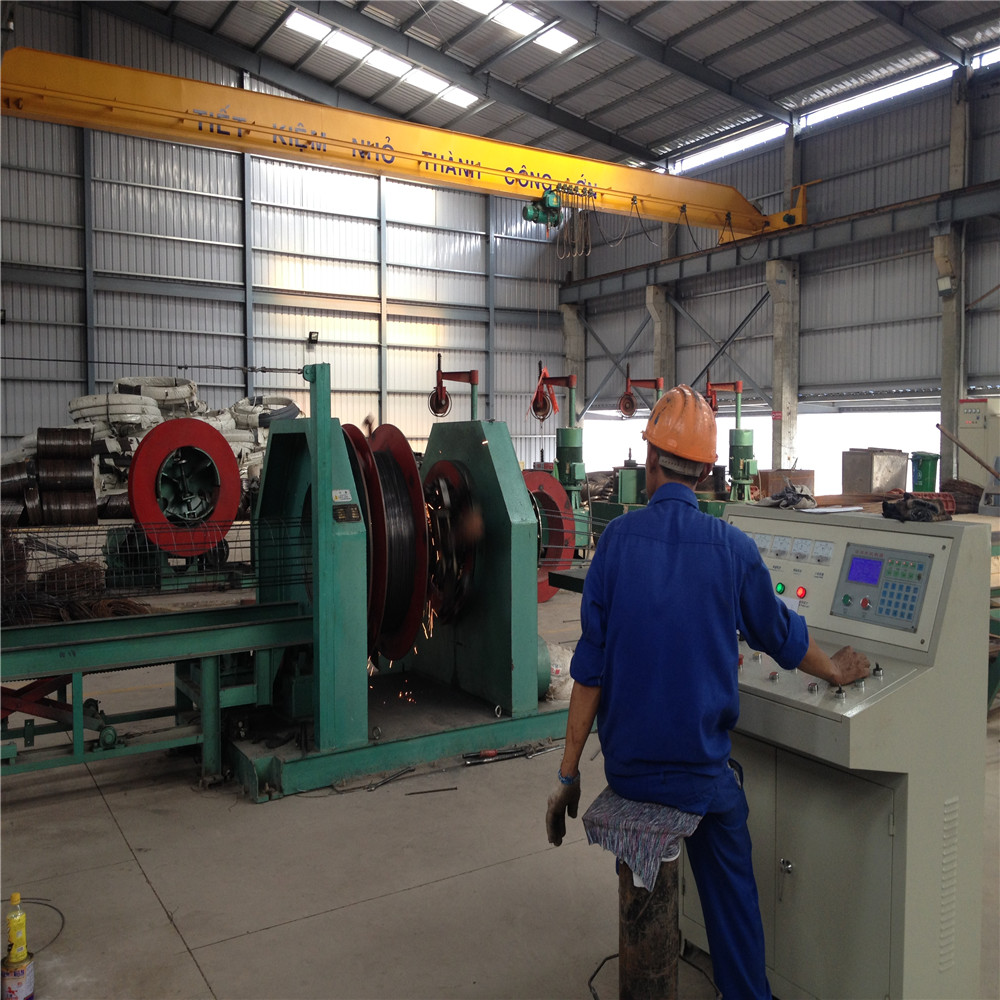

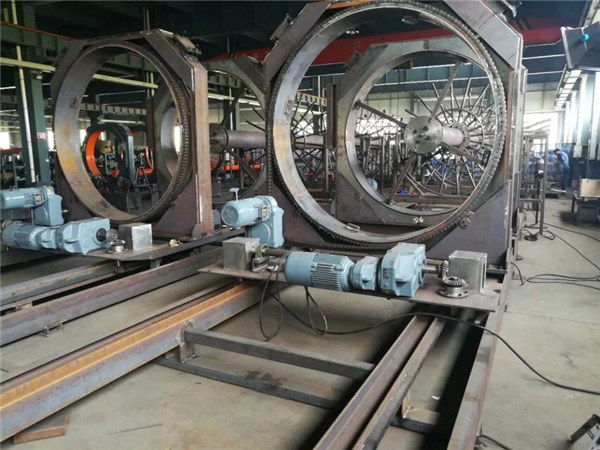

pc bar cage welding machine for precast concrete spun pile

pc bar cage welding machine for precast concrete spun pile

Product Description

This cage machine is full-automatic and especially used for producing the rebar cage of high strength concrete pile. It is widely used in welding the body of the self-stress, pre-stress pre-tensioning and post-tensioning rebar cage. It has the following features:

1. It can weld large-diameter and long rebar cage. It seldom twists rebar and the overall performance is good.

2. The loss of strength is low and the whole cage welded is firm.

3. The screw pitch of the rebar cage can be adjusted. The shaping process is quick.

4. It can work stably for a long time with high efficiency.

5. This cage machine has variable frequency control system. It is safe, environmental-friendly, stable and reliable.

6. It has reasonable structure and it easy to operate and maintain.

Technical Parameters

1. Rebar Cage Diameter Φ300 Φ400 Φ500 Φ600

2. Rebar Length 4M—15M (maximum 45M)

3. Number of Longitudinal Rebar 6, 7, 10 or 7, 10, 11, 12, 14 etc.

4. Longitudinal Rebar Diameter Φ7.1 Φ9.0 Φ10.7 Φ12.6

5. Circular Rebar Diameter Φ4mm—Φ6mm

6. Screw Pitch of the Rebar Cage 0—150mm

7. Welding Speed Maximum speed > 0-3000mm/min

8. Driving Power 8.7KW

9. Welding Transformer Power 300KVA

10. Main Engine Rotating Speed 0—64 r/min

11. Welding Manner Electric Resistance Welding

12. Control Mode Automatic Control

13. Welded Material Rebar (Carbon Content <0.20%)

14. Strength Loss in Welding Spot ≤5%

15. Tensile Force in Welding Spot ≥200 kg

16. Cooling Mode of Welding Transformer Air Cooling

17. Power Supply 380v±5% 50HZ

18. Working Temperature -5℃—+45℃

19. Relative Humidity <85%

20. Total Weight ≈5T

Why Choosing Us

Customers from all over the world choose us for the below resons.

1. Advanced technology and strong R & D capacity

Currently our company owns more than 30 patents for contruction material industry, and we are the drafting member of Chinese industry standard. Besides, we have deep cooperation with scientific institude of related area. We asure you that our experienced technicians can provide you the most professional service.

2. High efficiency of our products

All our production lines are highly automatic through the whole production process. Besides, we are one of the very few manufacturers in China that can supply complete set of automatic electric pole production line. Less human dependent means lower failure rate, higher production efficiency and higher production stability.

3. Highly approval from both domestic and foreign market

We have been the vendor of Chinese largest concrete pile manufacturer for many years. And our products have received highly approval from all our customers in Southeast Asia and Korea. That means our products have been approved by both domestic and foreign market.

4. Customer-oriented service

Customer demand have always been the top priority through all section (sales, technical, production and logistic) of our company. We aim to provide unique service for every customer, and the satisfaction of customer is our ultimate goal.

5. Professional service system

After years efforts, the company have established a standard, organized and efficient service system. With this powerful service system we are able to handle most situation including emergency. And ensure customer's ontime-delivery.
