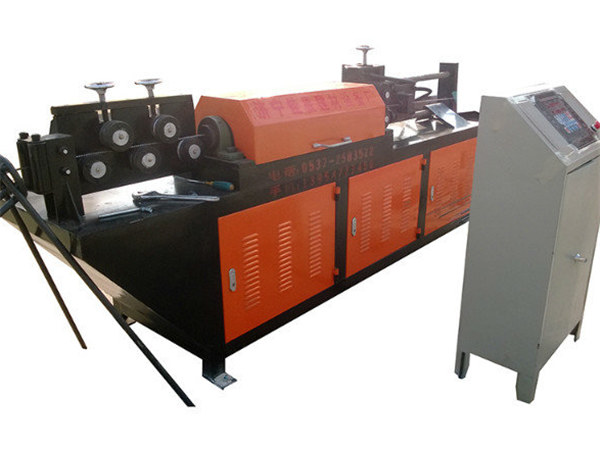

GT4-14 wire rod rebar straightening and cutting machine

GT4-14 wire rod rebar straightening and cutting machine

Product Description

GT4-14 steel bar straightening and cutting machine has the functions of presetting , automatic counting and stopping , steel guiding.Compared with other manufacturers' similar products,the straightening frame of GT4-14 adopts the hot rolling process, which has the features of beautiful appearance, strong rigidity, good straightening effect.Hydraulic system is simple and reliable, no oil leakage.

The Advantages of steel bar straightening and cutting machine

-The microcomputer control, automatic straightening, automatic length, cut off automatically

- More batch input length and quantity at the same time, the computer storage memory

-Hydraulic cutting, more accurate, more quiet

-Lower noise,morestable,save electricity, easy to transport

-Smooth operation, low fault rate and easy maintenance, cheap accessories

Straightening rebar diameter4-14mm
Wire pulling speed35-42m/min(Speed Regulation)
Length of wire rod800-900mm
Length tolerance±0.5cm
Wire straightness±2mm/m
Motor power Straightening7.5kwCutting 4kw
Overall dimension3220x690x1160(mm)

Quick Details

Place of Origin:Shandong, China (Mainland)
Brand Name:JIAXIN
Model Number:GT4-14
Straightening rebar diameter:4-14mm
Wire pulling speed:35-42m/min(Speed Regulation)
Length of wire rod:800-900mm
Length tolerance:±0.5cm
Wire straightness:±2mm/m
Overall dimension:3220x690x1160(mm)
After-sales Service Provided:Engineers available to service
